Rigging Screw Grade S Eye/Eye

Generally used for straight or in line tensioning in conjunction with wire rope and or chain assemblies when heavy duty straining and lifting applications are required.

• Manufactured from Grade S high tensile material quenched and tempered hot dipped galvanised finish
• Suitable for outdoor and for industrial lifting purposes use
• Available in metric sizing and jaw end fittings with lock nuts
• Meets the design requirements of AS2319
• Proof tested to 2 x WLL and minimum break force is 6 x WLL
• Individual proof tested
• Sizes available are from 10mm to 48mm

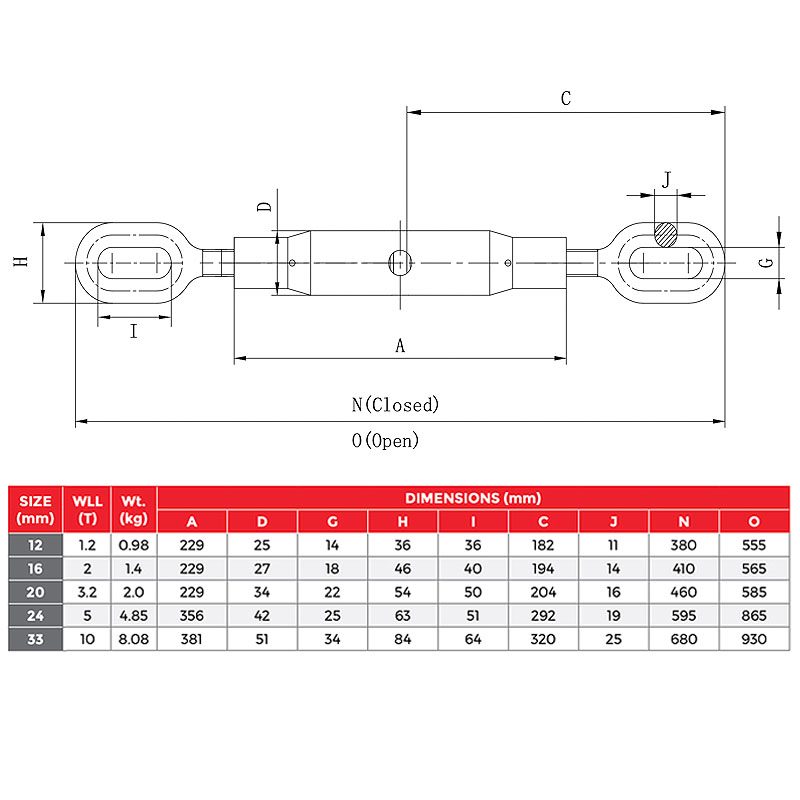

• For more info see specifications of each size as per diagram
