G100 Master Ring

From $25.00

G100 Master Rings designed to cater for single leg and double leg chain sling or wire rope applications. Forged from Super Alloy Steel and batch tested with a resulting 4:1 safety factor. Marked with size, grade, batch and manufacturer quality mark.

SKU: N/A

Description

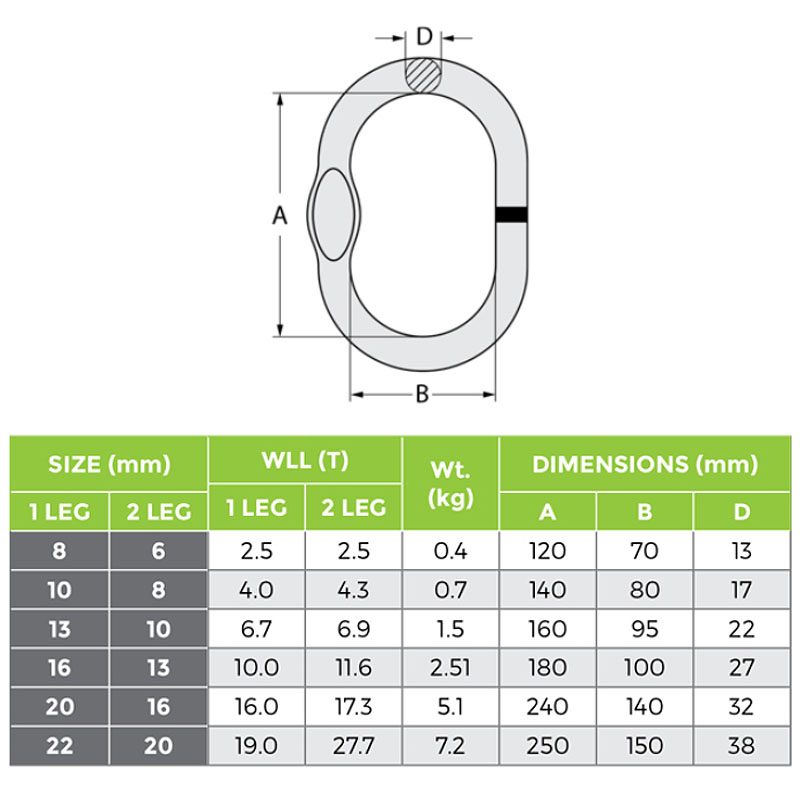

Suit Chain Size (mm)		Sku	WLL (T)	Weight (kg)	Dimensions (mm)
1 Leg	2 Leg	Sku	WLL (T)	Weight (kg)	A	B	C
8	6	126752	2.5	0.4	120	70	13
10	8	11060	4.3	0.7	140	80	17
13	10	11061	6.9	1.5	160	95	22
16	13	11062	11.6	2.51	180	100	27
20	16	11063	17.3	5.1	240	140	32
22	20	11065	27.7	7.2	250	150	38
26	22	11393	32.9	7.86	250	150	40
32	26	11394	45.8	14.86	300	180	50

Certified to AS/NZS 3776
G100 Alloy Steel.
