Home / Products / Lifting Equipment / Lever Hoists & Parts / Lever Hoists / Kito Lever Hoist LB

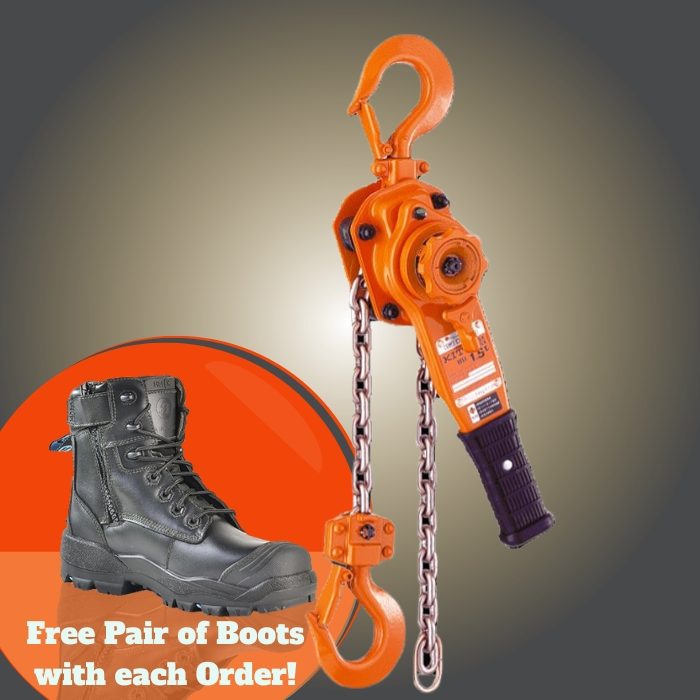

Kito Lever Hoist LB

From $749.00

The LB model is ideal where precision work in very confined spaces is particularly important. By using double reduction gearing and a patented induction hardening process on load bearing parts, the hoists weight and size is reduced while improving overall strength. Suitable for operation in temperatures between -40° and 60°C.

Non-Standard sizes may not be held in stock, please allow 1-3 months for delivery or give us a call to arrange Airfreight.

Add to WishlistAlready In Wishlist
Add to Wishlist
Add to quote
SKU: N/A

Need compliance tags? Click here to purchase

Description

Model Sku WLL (t) Lift (m) Hand Effort to Lift Full Load (kg) Dia. of Load Chain x Pitch (mm) Weight Test Load (t) Weight of Additional Chain (kg per meter)
LB008 9013 0.8 1.5 29 5.6 x 15.7 5.7 1.2 0.7
LB010 Enquire 1 1.5 36 5.6 x 15.7 5.9 1.5 0.7
LB016 6828 1.6 1.5 34 7.1 x 19.9 8 2.4 1.1
LB025 7822 2.5 1.5 37 8.8 x 24.6 11.2 3.8 1.7
LB032 11135 3.2 1.5 37 10 x 28 15 4.8 2.3
LB063 11136 6.3 1.5 38 10 x 28 26 7.9 4.7
LB090 11137 9 1.5 39 10 x 28 40 11.3 7.0

WLL a (mm) b (mm) C (mm) D (mm) e (mm) g (mm) S (mm) t (mm)
0.8t 114 119 280 245 97 23.5 35.5 14
1t 114 119 300 245 97 29 42.5 15
1.6t 159 126 335 265 100 32 42.5 19
2.5t 173 150 375 265 102 36.5 47 21
3.2t 190 159 395 415 112 39 50 24.5
6.3t 190 217 540 415 112 50 60 34
9t 190 304 680 415 112 72.5 85 41.5

Learn More Here!
