From $849.00
Capacity: 1.0T – 5.0T

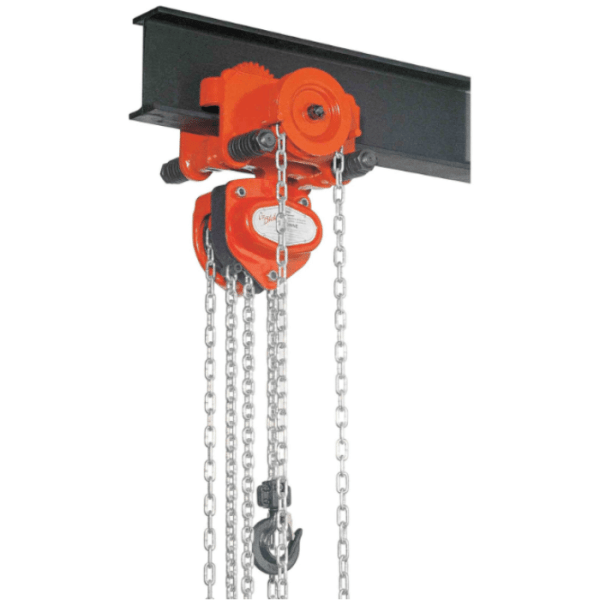

This compact, robust, integrated chain block and trolley is perfect for locations where headroom is constrained. The ergonomic design allows for minimal operator effort to raise the load and enable exact positioning and easy traversing of heavy loads.
Not held in store. Please allow 5-7 days for delivery.
Need compliance tags? Click here to purchase
Dimensions
PRODUCT CODE | A | B | C | D | E | F |
---|---|---|---|---|---|---|
158366 | 277mm | 170mm | 10mm | 283mm | 22mm | 3mm |
158367 | 302mm | 194mm | 12mm | 295mm | 27mm | 3mm |
158368 | 363mm | 230mm | 14mm | 304mm | 30mm | 3mm |
158369 | 436mm | 260mm | 18mm | 330mm | 42mm | 3mm |
Specifications
PRODUCT CODE |
W.L.L. | STANDARD LIFT |
HAND EFFORT TO LIFT W.L.L. |
BEAM WIDTH |
MIN. HEADROOM HEIGHT |
---|---|---|---|---|---|
158366 | 1.0t | 3m | 40kg | 58mm – 180mm | 375mm |
158367 | 2.0t | 3m | 70kg | 58mm – 180mm | 438mm |
158368 | 3.0t | 3m | 65kg | 74mm – 180mm | 593mm |
158369 | 5.0t | 3m | 100kg | 98mm – 180mm | 741mm |
