From $359.00

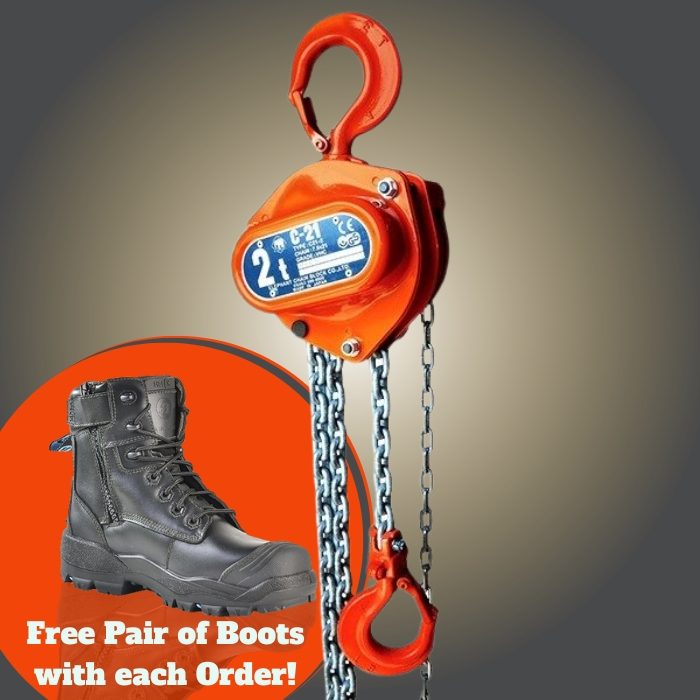

Elephant Chain Blocks are built to last, offering great performance at a great price. Made from Japanese steel, these chain blocks are best suited towards those that use their chain blocks daily.
Need compliance tags? Click here to purchase
| Sku | WLL | A | B | C | D | E | F | G | H | I | J |
|
5342 (3m) |
0.5t | 275mm | 131mm | 54mm | 77mm | 121mm | 30mm | 36mm | 17mm | 13mm | 24mm |
| 1102lbs | 10.82in | 5.15in | 2.12in | 3.03in | 4.76in | 1.18in | 1.41in | 0.66in | 0.51 | 0.94in | |
| 5343 (3m) 8923 (6m) |
1t | 310mm | 143mm | 61mm | 82mm | 148mm | 34mm | 43mm | 22mm | 16mm | 29mm |
| 2204lbs | 12.20in | 5.62in | 2.40in | 3.22in | 5.82in | 1.33in | 1.69in | 0.86in | 0.62in | 1.14in | |
| 5344 (3m) 8927 (6m) |
1.5t | 340mm | 152mm | 68mm | 84mm | 168mm | 36mm | 43mm | 26mm | 21mm | 29mm |
| 3306lbs | 13.38in | 5.98in | 2.67in | 3.30in | 6.61in | 1.41in | 1.69in | 1.02in | 0.82in | 1.14in | |
| 5345 (3m) 11055 (6m) |
2t | 384mm | 164mm | 75mm | 89mm | 193mm | 42mm | 53mm | 29mm | 22mm | 34mm |
| 4409lbs | 15.11in | 6.45in | 2.95in | 3.50in | 7.59in | 1.65in | 2.08in | 1.14in | 0.86in | 1.33in | |
| 5346 (3m) 11056 (6m) |
3t | 480mm | 152mm | 68mm | 84mm | 209mm | 44mm | 53mm | 35mm | 28mm | 36mm |
| 6613lbs | 18.89in | 5.98in | 2.67in | 3.30in | 8.22in | 1.73in | 2.08in | 1.37in | 1.10in | 1.41in | |
| 11057 (6m) | 5t | 555mm | 164mm | 75mm | 89mm | 297mm | 58mm | 70mm | 46mm | 34mm | 47mm |
| 11023lbs | 21.85in | 6.45in | 2.95in | 3.50in | 11.69in | 2.28in | 2.75in | 1.81in | 1.33in | 1.85in |
